High Luminance
With a high luminance of 400cd/m2,you could seerich layers of image.Enhance your visual experienceand let you see the world higher, farther and deeper
Contact us to learn better prices
-10%

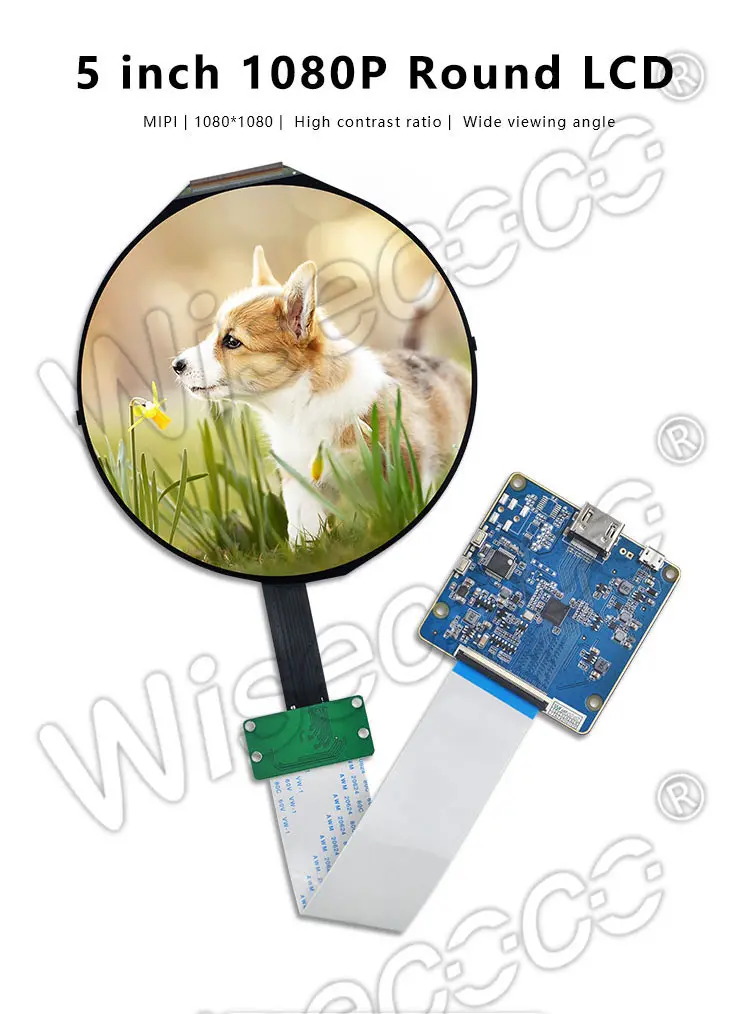

1080P 5 Inch Round Screen Circle Screen Roundness Circular Mipi Dsi Interface Round Lcd Display Screen Module Mipi
Original price was: $199.00.$179.00Current price is: $179.00.
|
General Features |
|||
|
Diagonal Size |
5.0 inch |
Type |
LCM , TFT-LCD |
|
Pixel Format |
1080(H) RGB*1080(V) (FHD) |
Configuration |
RGB Vertical Stripe |
|
Active Area |
127.008 (H)*127.008 (V)mm,circle |

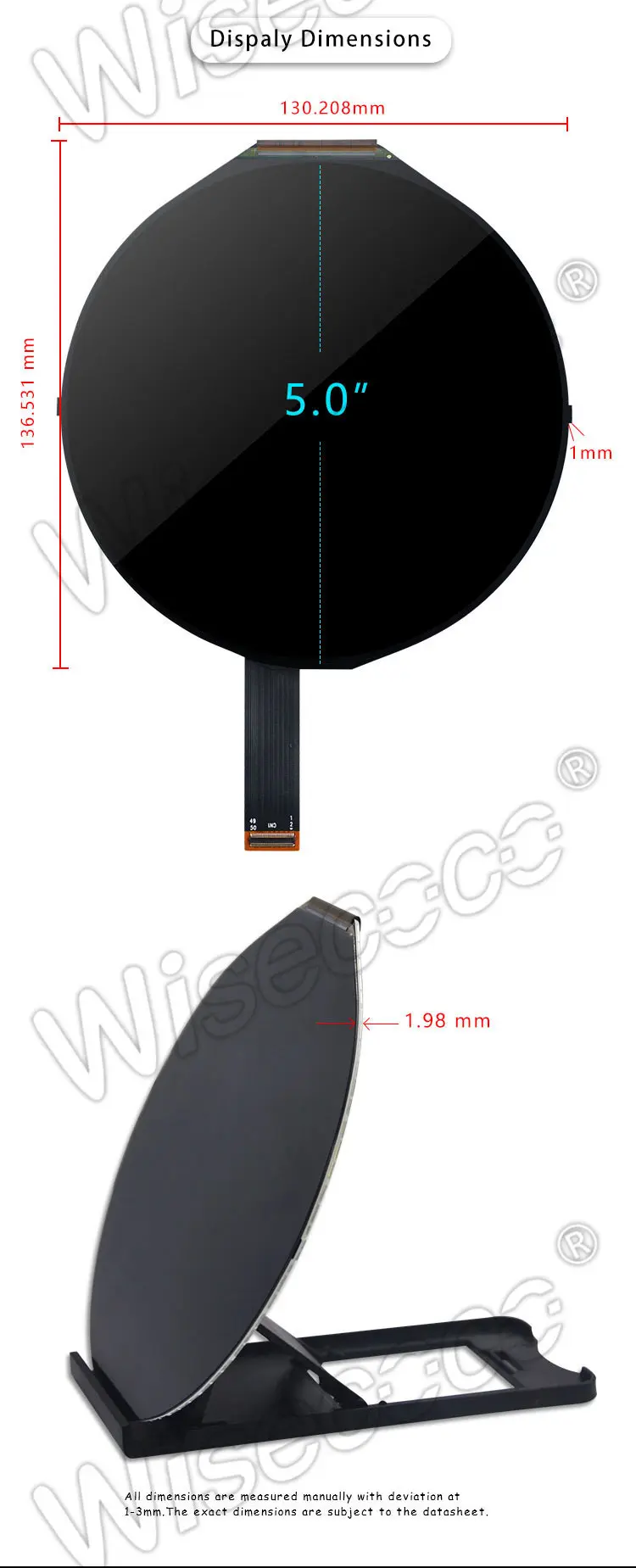

Outline Dim. |
136.531*132.208*1.98mm,circle |
|
Luminance |
400 cd/m² (Typ.) |
Contrast Ratio |
1300:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
40 (Max.)ms (Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
Operating Mode |
Normally Black, Transmissive |
|
Support Color |
16.7M 70% NTSC |
Backlight |
WLED |
|
Weight |
TBD |
Designed For |
Industrial Application; Speedometer |
|
Frame Rate |
– |
Touch Panel |
without |
|

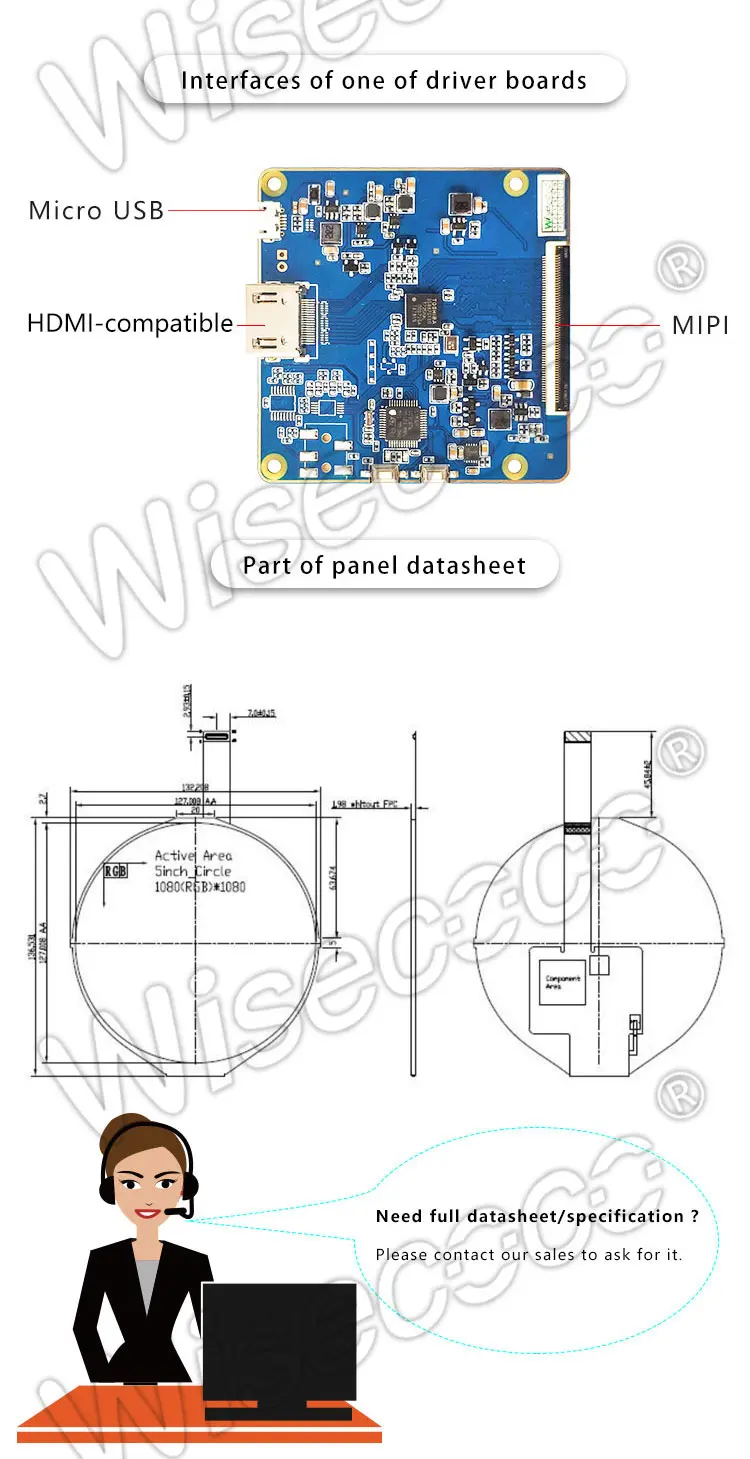

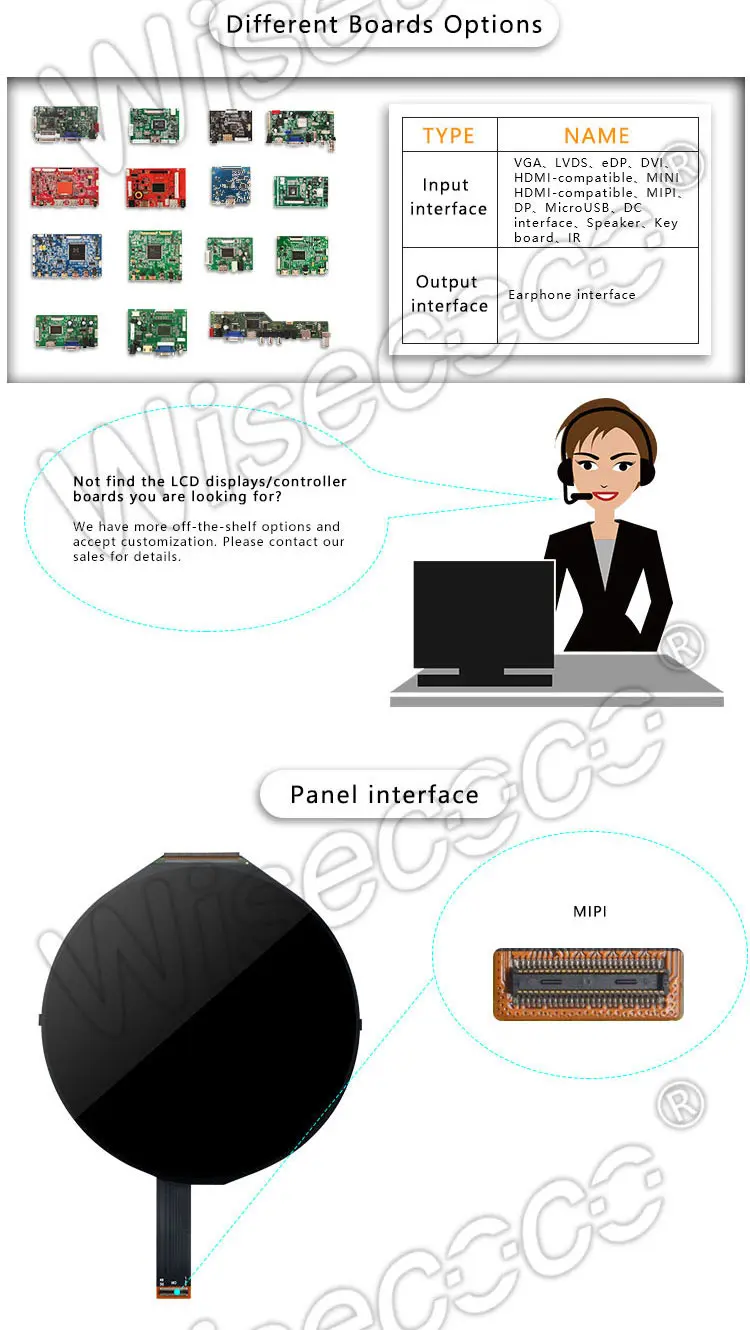

Interface Type |
Micro USB, 50 pin MIPI |
||
|
Power Supply |
1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD) |
||
|
Environment |
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
||
