High Luminance
With a high luminance of 300cd/m2, you could seerich layers ofimage.Enhance your visual experienceand let you see the world higher, farther and deeper
Contact us to learn better prices
-48%

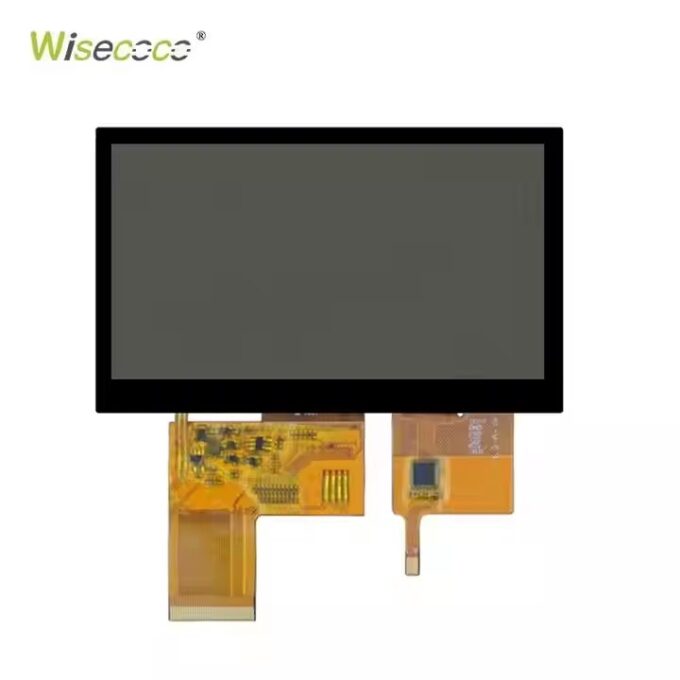

5 Inch Transparent LCD Touch Screen 800*480 TFT LCD I2C Capacitive Display Touch Panel
Original price was: $19.00.$9.90Current price is: $9.90.
| General Features | |||
| Screen Size | 5 inch | Type | TFT-LCD , LCM |
| Resolution | 800*480 | Configuration | RGB Vertical Stripe |
| Active Area(mm) | – | Outline(mm) | – |
| Bezel Area(mm) | – | Treatment | – |
| Luminance | 1000 cd/m2 (Typ.) | Contrast Ratio | 300:1 |
| View Direction | 6 o’clock | Response Time | – |
| Viewing Angle | – | Operating Mode | Transmissive Type, Normally White Mode |
| Support Color | 16.7M 50% NTSC | Backlight |
Voltage 22.4V(Typ.), Current 20mA(Typ.) |
| Panel Weight | – | Used for |
handheld&PDA, Industrial Equipment, Time Recording |
| Refresh Rate | – | Touchscreen | optional |
| Voltage Supply | – | Signal Type | 24-bit RGB interface (LCD), I2C interface (CTP) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
