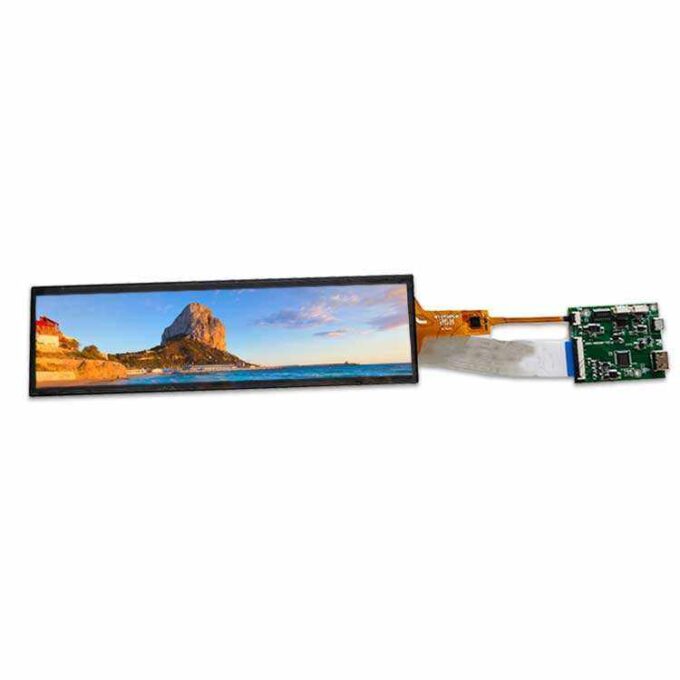

Best Quality 480×1920 Ips Small LCD Screen Touch Panel TFT Display Bar LCD TFT Touch Screen 8.8” 8.8inch Color LCD Screens

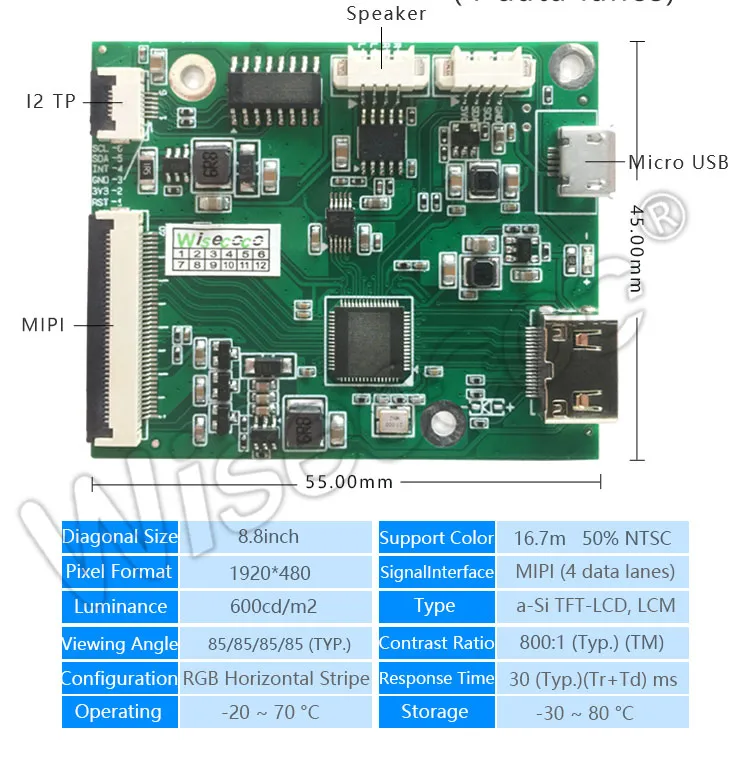

Diagonal Size

8.8 inch

Type

LCM ,   a-Si TFT-LCD

Pixel Format

1920×480(RGB)  222PPI

Configuration

RGB Horizontal Stripe

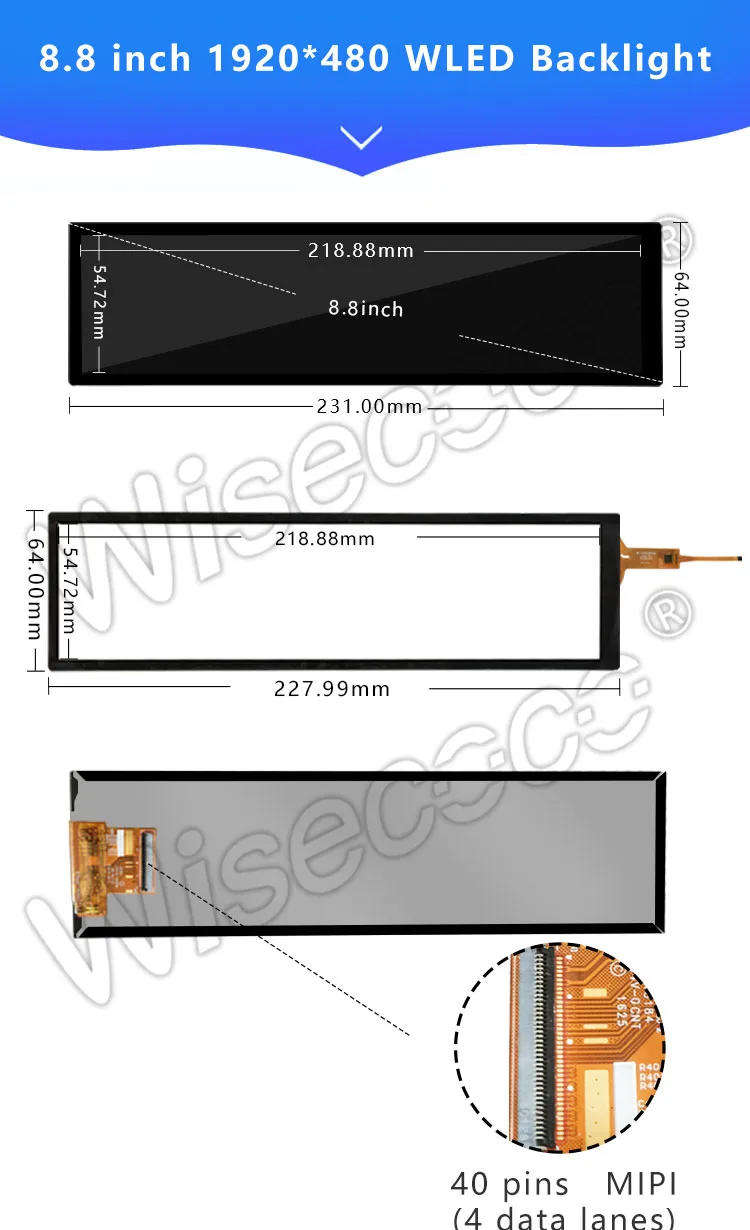

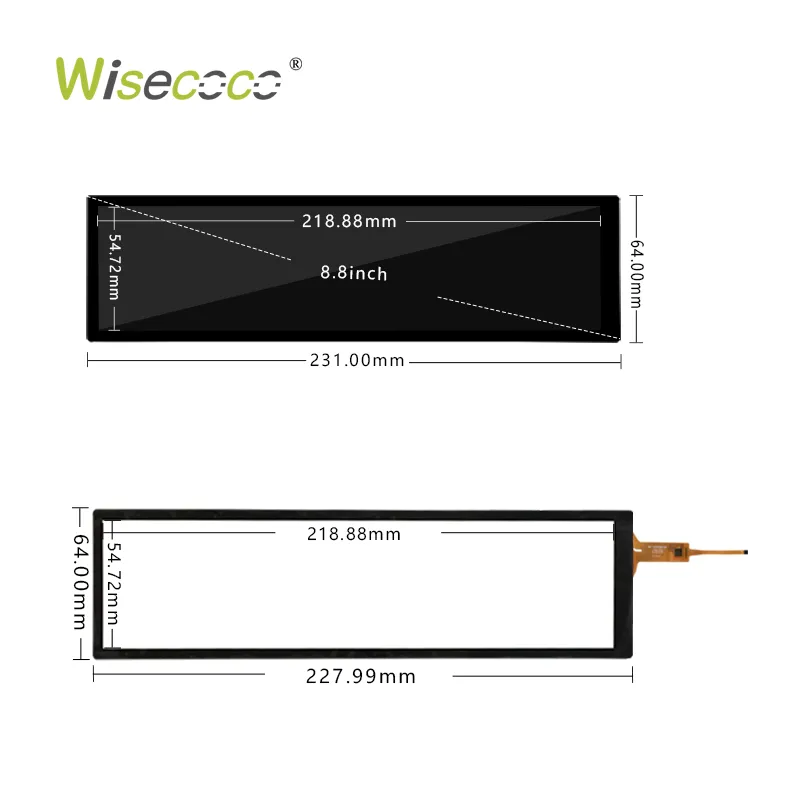

Active Area

218.88(H)×54.72(V) mm

Outline Dim.

231.3 × 64.3 × 6.4 (H×V×D) mm

Luminance

–

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

30 (Typ.)(Tr+Td) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10) 50% NTSC

Operating Mode

IPS Pro, Normally Black, Transmissive

Support Color

16.7M

Light Source

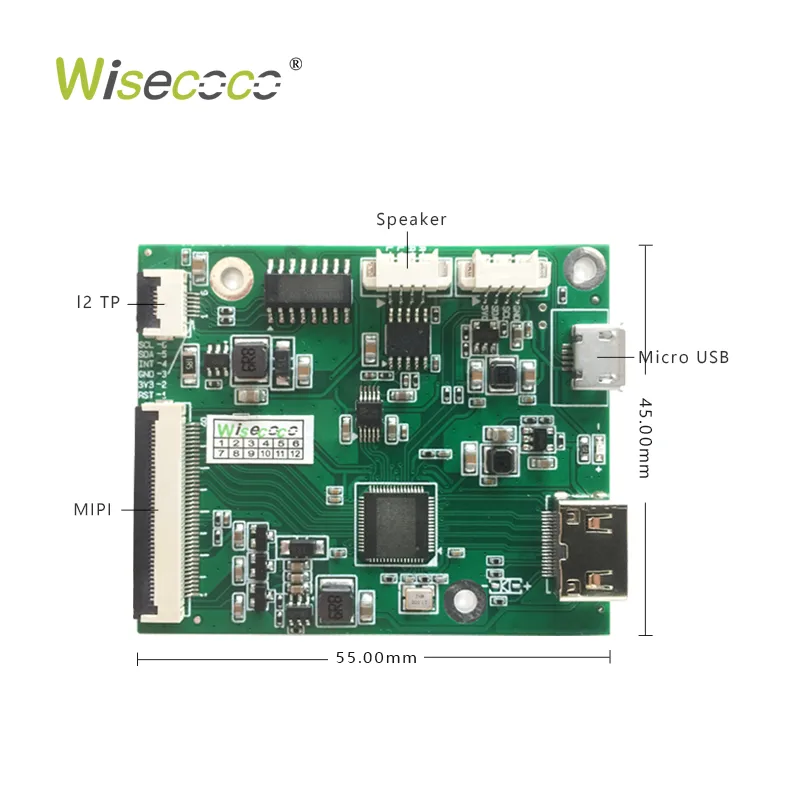

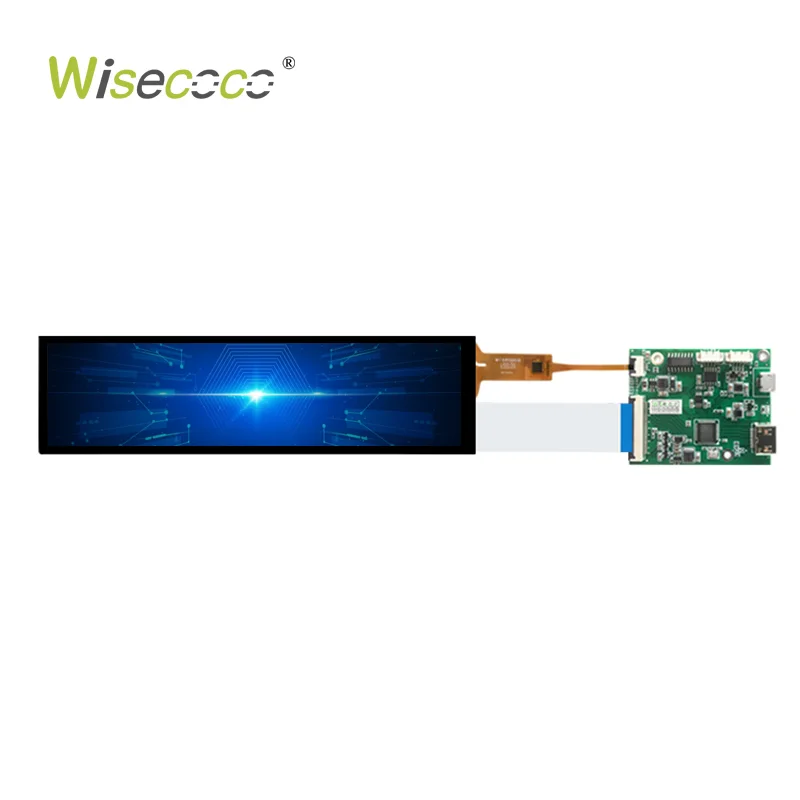

White LED backlight, 30K hours , without Driver board

Aspect Ratio

>3:1(H:V)

Designed For

Advertising Display, system monitor

60Hz

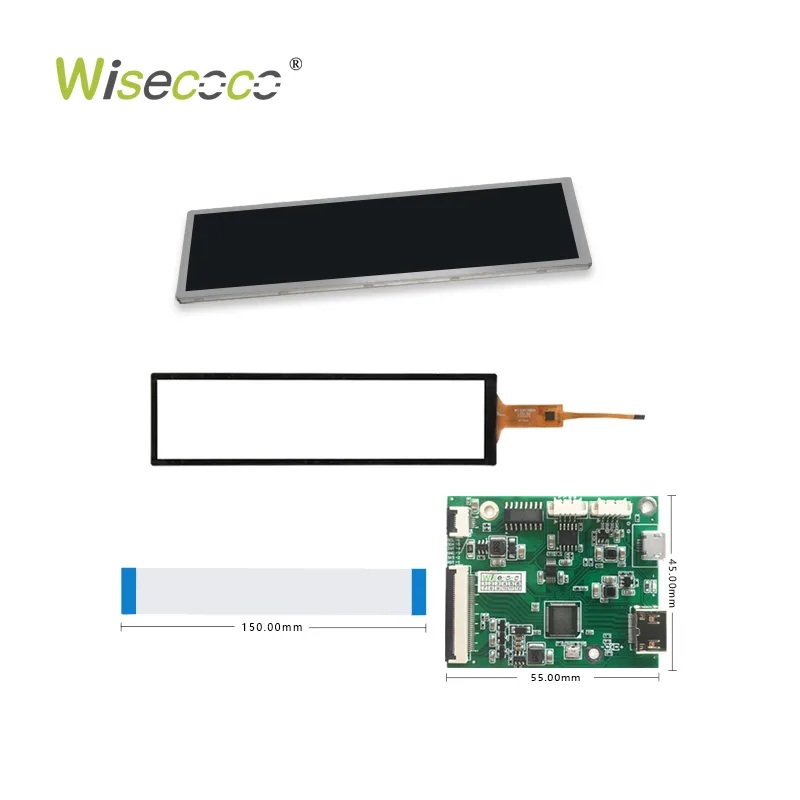

Touch Panel

Optional

Interface Type

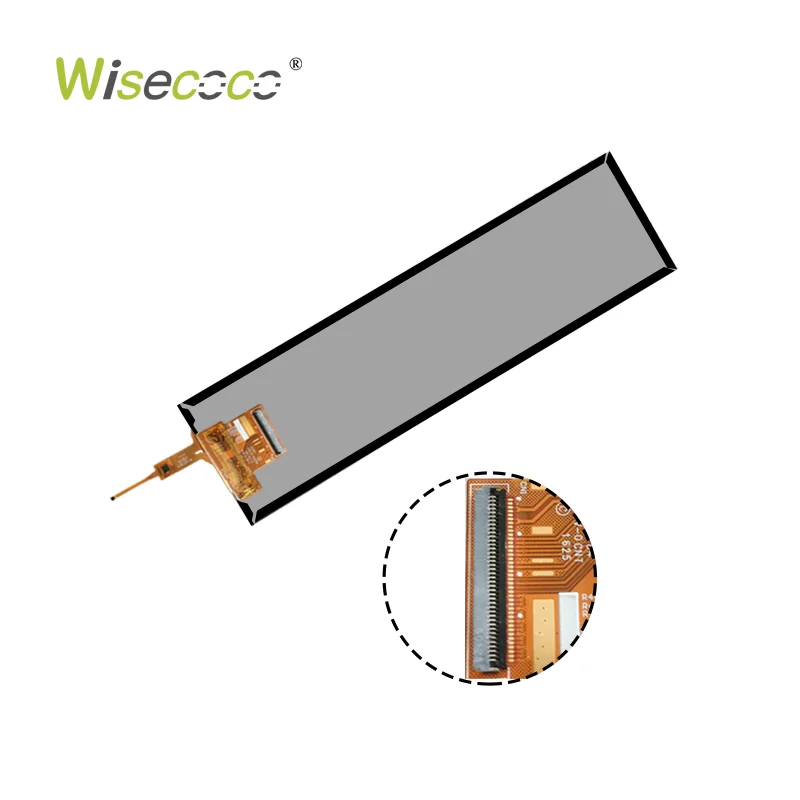

 MIPI (4 data lanes) , 40 pins , Connector

Power Supply

3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)

Environment

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
