IPS OLED Panel
Clearer and more Colorful image could be seen at a wide vieding angle
Contact us to learn better prices
-10%

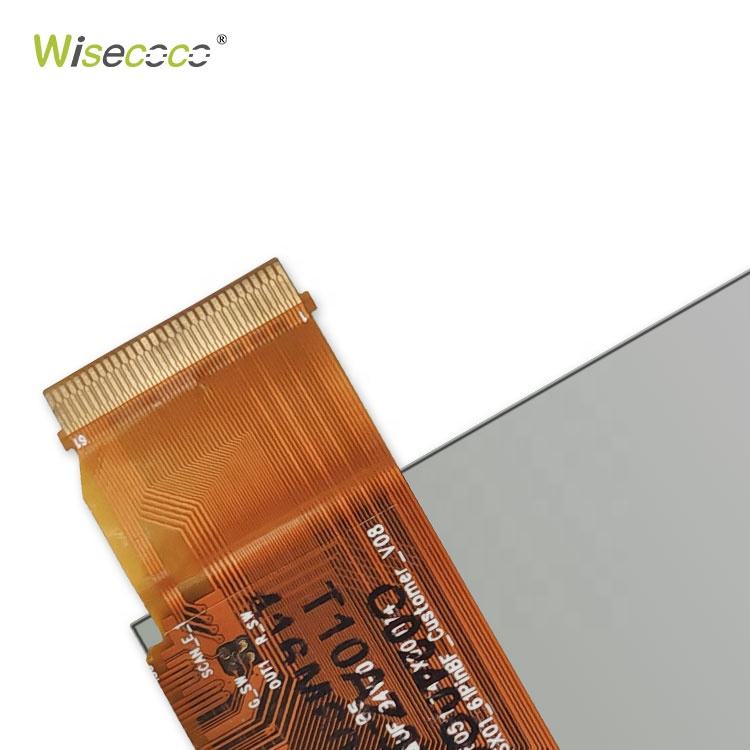

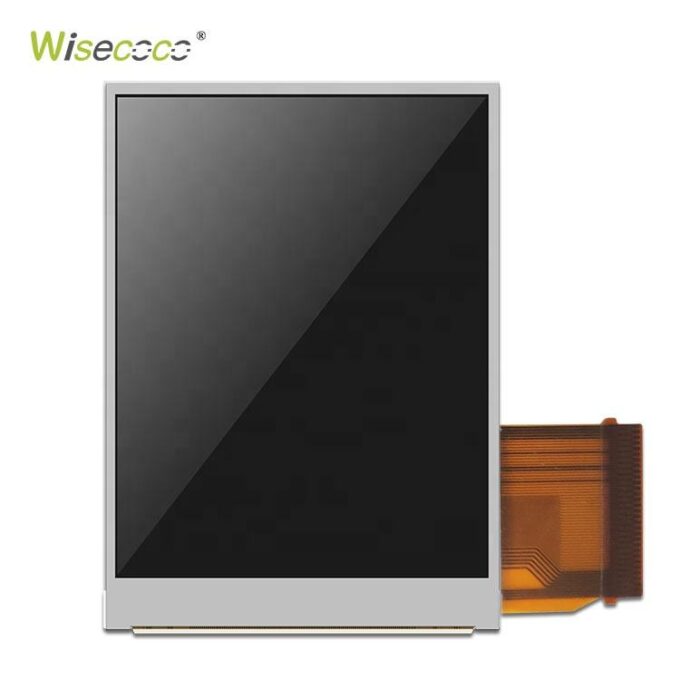

C0240QGLA-T C0240QGLG-T 240*320 2.4 Inch TFT Lcd Display Ips Micro Super Display Screen Panel Module Fpc Connector
Original price was: $99.00.$89.00Current price is: $89.00.
| General Features | |||
| Diagonal Size | 2.4 inch | Type | AM-OLED, OLED |
| Pixel Format | 240(RGB)*320 [QVGA] | Configuration | RGB Vertical Stripe |
| Active Area | 36.72(H)*48.96(V) mm | Outline Dim. | 40.72(H)*57.32(V) mm |
| Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 10000:1 (Typ.) (TM) |
| View Direction | — | Response Time | 0.05/0.05 (Max.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR>10) | Operating Mode | — |
| Support Color | 65K/262K 73% (CIE1931) | Light Source | self , 30K hours |
| Weight | 6.30g (Typ.) | Touch Screen | Without |
| Frame Rate | 60 Hz | Application | Medical devices, Bar code hand-held terminal, Mobile POS, etc. |
| D-IC Detail | Built-in S6E63D6 | ||
| Interface Type | 61 pins 8/9/16/18-bit 6800/8080 parallel, 6/16/18-bit RGB, SPI , FPC | ||
| Power Supply | 2.8/1.8V (Typ.)(VCI/VDD3) | ||
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -40 ~ 80 °C | ||
