Available Applications:
Smart Watch
Portable instrument
Digital camera monitor
Smart home device
Contact us to learn better prices！
-13%

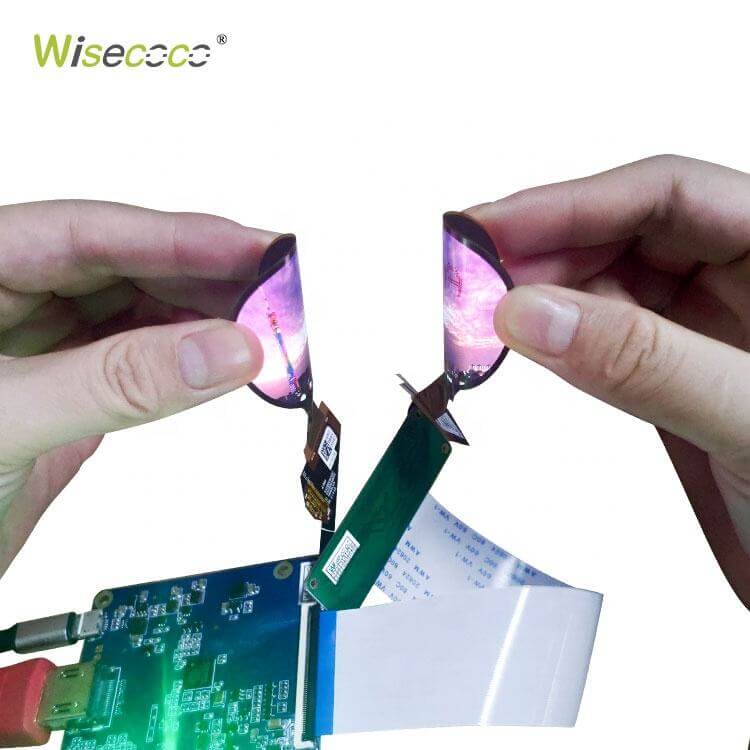

1.39 Inch 400*400 Small Thin Raspberry Pi Round Flexible Oled For Robot Eyes Circular AMOLED Dual Kit Display
原价为：$160.00。$140.00当前价格为：$140.00。
| General Features | |||
| Panel Size | 1.39 inch | Panel Type | LTPS Color AM-OLED, Assembly |
| Resolution | 400(H) RGB*400(V), Circle | Pixel Format | RGB-SBS |
| Display Area | 35.4 mm (Diameter) | Bezel Opening | – |
| Outline Size | 38.6(H)*40.5(V)*0.7(T) mm (Typ.), w/o FPCa | Contrast Ratio | 10000:1 (Typ.) |
| Brightness | 300 Cd/m2 (Typ.) | Response Time | <4 ms (Typ.)(Tr+Tf) |
| View Direction | Symmetry | Support Color | 16.7M 100% (Typ.)NTSC |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) | Light Source | Self |
| Frequency | 60 Hz | Touch Screen | Optional |
| Weight | 1.5g (Typ.) | Surface | 3H Hard coat treating(Glare) |
| Power Supply | 2.8/1.8/4.6/-2.4V (Typ.)(VCI/VDDIO/ELVDD/ELVSS) | Application | Smart products |
| Interface Type | MIPI, 24 pin BTB Connector, PFC | ||
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
| Color | Brown |
|---|
