IPS LCD Panel
Clearer and more Colorful image could be seen at a wide vieding angle
Contact us to learn better prices
-14%

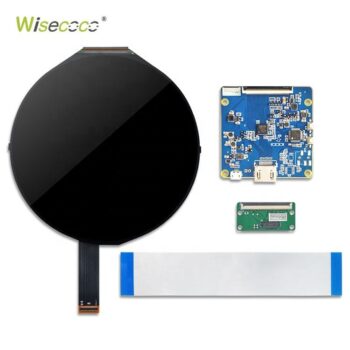

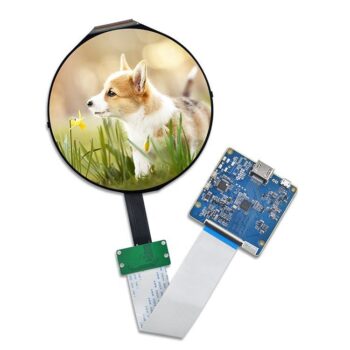

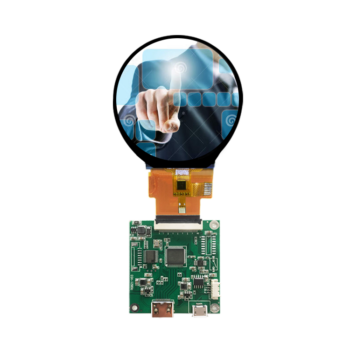

IPS 3.4Inch Round Display MIPI Interface 39 Pins Touch Smart Watch Amoled Module
Original price was: $147.00.$127.00Current price is: $127.00.
|
General Features |
|||
|
Diagonal Size |
3.4 inch |
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)*800 |
Configuration |
RGB Vertical Stripe |
|
Active Area |
87.6(H)*87.6(V) mm |
Outline Dim. |
99(H)*96.6(V) mm |
|
Bezel Area |
– |
Treatment |
Hard coating (7H) |
|
Luminance |
350 Cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
25 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
Operating Mode |
SFT, Normally Black, Transmissive |
|
Support Color |
16.7M 70% (CIE1931) |
Light Source |
WLED [2S4P] , 30K hours , W/O Driver |
|
Weight |
TBD |
Designed For |
Industrial Application,meter, Smart wearable , Raspbery Pi |
|
Frame Rate |
– |
Touch Panel |
PCAP |
|
Interface Type |
39 pins MIPI (3 data lanes) , FPC |
||
|
Power Supply |
1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD) |
||
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
||
Add a review
Be the first to review “IPS 3.4Inch Round Display MIPI Interface 39 Pins Touch Smart Watch Amoled Module”
Related products
-
Wisecoco Sunlight Readable 7 Inch 1024*600 Wide Temperature High Brightness 2000nits Lvds I2c Touchscreen Lcd Module Display
Original price was: $56.00.$46.00Current price is: $46.00. -

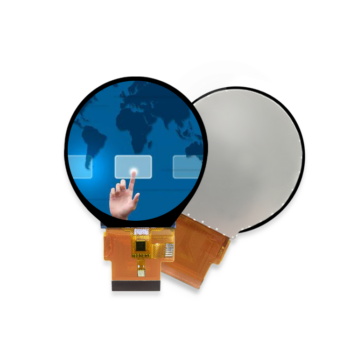

2.1 inch Circular LCD 2.1 inch Round Display 480×480 IPS TFT Touch Screen Smart Home Robot LCD Display Panel
Original price was: $105.00.$85.00Current price is: $85.00. -
Open-cell 3840*2400 High Resolution Monochrome Screen for DLP SLA 3D Printer 8.9 Inch 4k Monochrome LCD Panel IPS Display
Original price was: $195.00.$155.00Current price is: $155.00. -

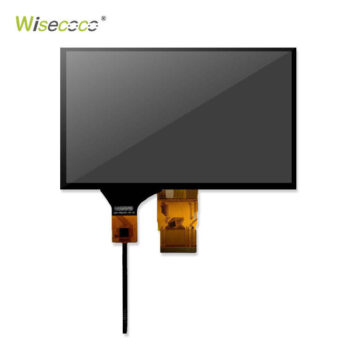

Industrial 4.3 Inch Resolution 800*480 Pixels 24 Bit RGB Interface Touch Screen TFT LCD I2C Touch Screen Display Panel Module
